OIL CONTROL VALVE (OCV) CONSTRUCTION/OPERATION [13B-MSP]


id0111e4019200


Construction

•  The OCV is installed to the front cover (below the ignition coil bracket).
ar8wzn00000538
•  The OCV consists of a spool valve that switches the passages for engine oil, a coil that moves the spool valve, a plunger, and a return spring.
ar8wzn00000539

Operation

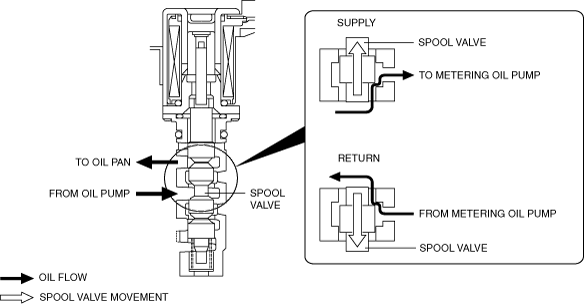

•  Based on the signals from the PCM, the spool valve inside the OCV moves up and down. With the up/down movement of the spool valve, the amount of oil supplied to the metering oil pump is controlled, and the oil pressure inside the metering oil pump is kept constant.
ar8wzn00000540
•  For OCV control, refer to CONTROL SYSTEM, OIL PRESSURE CONTROL. (See OIL PRESSURE CONTROL OUTLINE [13B-MSP].)
