OIL COOLER CONSTRUCTION [13B-MSP]


id0111e4100900

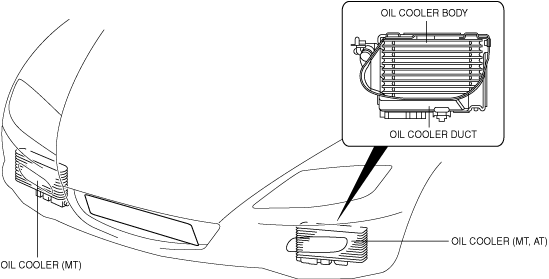

•  A large-sized, air-cooled type oil cooler has been adopted to handle the heat load resulting from the high engine output.
•  The oil cooler component is composed of an oil cooler body made of aluminum, and an oil cooler duct made of rubber.
ar8wzn00000546
