WATER PUMP CONSTRUCTION/OPERATION [13B-MSP]


id0112f2100400

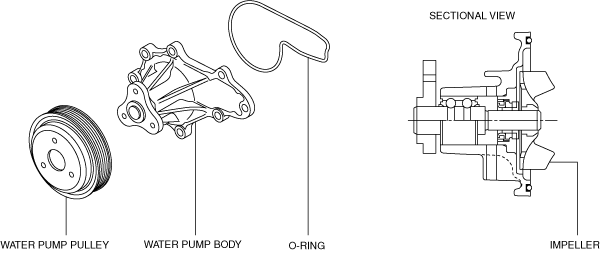

Construction

•  The water pump consists of a steel water pump pulley, a water pump body made of aluminum alloy, and a O-ring.
•  The water pump with the impeller built into the front cover has been adopted for size reduction. A plastic impeller has been adopted for reduced water pump drag.
ar8wzn00000541

Operation

•  The water pump is driven by the drive belt.
