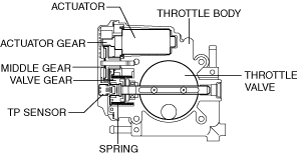

•  The throttle body construction is as shown in the figure.

ar8wzn00000355

•  The actuator is driven by a duty signal from the PCM. This driving force is transmitted to the actuator gear, middle gear, and valve gear, and the throttle valve opens.

•  Conversely, to close the throttle valve, the actuator is reversed by an opposite signal from the PCM, and the throttle valve closes.

•  The throttle valve opening angle is input to the PCM by the TP sensor.

•  The throttle valve body has a control spring. If a malfunction occurs and the actuator cannot be controlled, the throttle valve is maintained balanced at an opening angle of 5° by the spring. Due to this, the required amount of air for vehicle operation is ensured.
