SEQUENTIAL DYNAMIC AIR INTAKE SYSTEM (S-DAIS) STRUCTURE [13B-MSP]


id0113z3661500

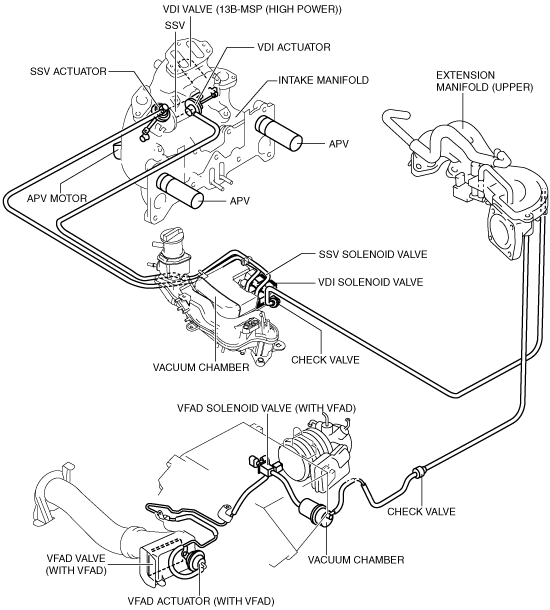

•  The S-DAIS is composed of the SSV, VDI valve (13B-MSP (High power)) and VFAD valve (with VFAD) which are opened and closed by intake manifold vacuum or BARO, and the APV which is opened and closed by motor drive.
