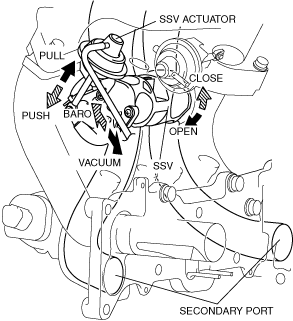

•  A diaphragm design has been adopted.

•  Normally, the rod is pushed by the force of the spring, closing the SSV. When intake manifold vacuum is applied to the diaphragm chamber, the rod is pulled, opening the SSV.
