AIR CLEANER ELEMENT INSPECTION [13B-MSP]

id0113z3800800

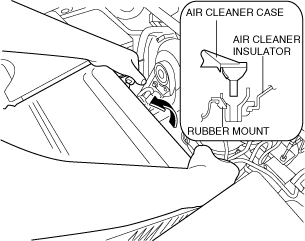

1.  Hold up the air cleaner as shown in the figure to remove the rubber from the air cleaner case.

ar8uuw00001303

2.  Remove the air cleaner element from the air cleaner.

ar8uuw00001304

3.  Inspect the following items:

•  If there is any abnormality, clean or replace the air cleaner element.

―  Has the replacement interval come?

―  Is the air cleaner element soiled, damaged, or bent?

―  Are the air cleaner case and the air cleaner element correctly sealed?

―  Is the correct air cleaner element installed?
