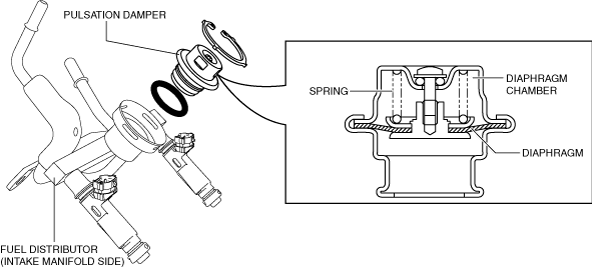

•  Installed to the fuel distributor (Intake manifold said).

•  Mainly consists of a diaphragm and spring.

•  Uses spring force in the diaphragm chamber to reduce fuel pressure pulsation produced just after fuel injection by the fuel injector.
