SECONDARY AIR INJECTION (AIR) PUMP CONSTRUCTION/OPERATION [13B-MSP]


id0116z2664500

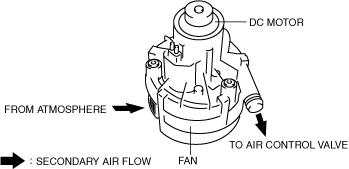

ar8wzn00000410
•  Mainly consists of a DC motor and fan.
•  When the AIR pump relay is turned on due to a PCM signal, the motor drives the pump fan to discharge secondary air.
