CHARCOAL CANISTER INSPECTION [13B-MSP]

id0116z2800500

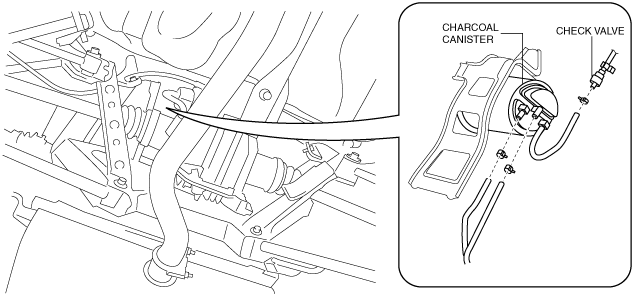

1.  Disconnect the hoses indicated in the figure.

ar8wzw00001215

2.  Perform the following procedures:

•  Assemble the hose used for inspection (bore: approx. 5.8 mm {0.23 in}) to port A.

•  Cover ports B and C with the caps.

ar8wzw00001216

Caution

•  Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

3.  Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}) through the hose, and verify that air does not leak from the charcoal canister.

ar8wzw00001218

•  If there is airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [13B-MSP].)
