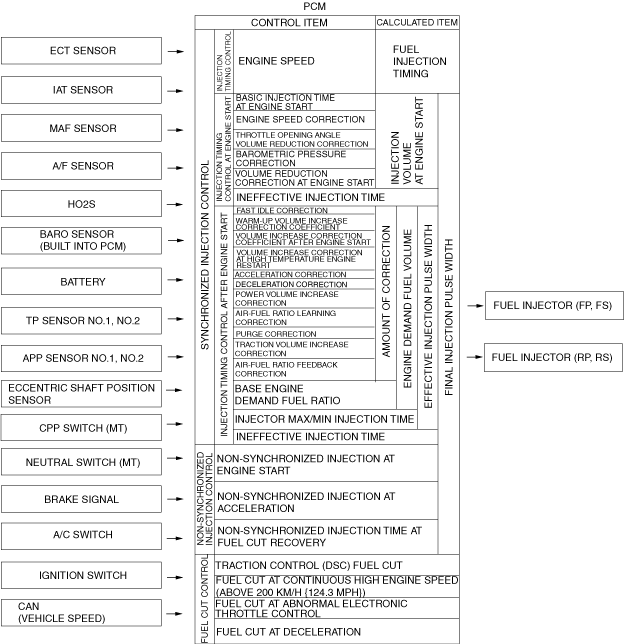

FUEL INJECTION CONTROL BLOCK DIAGRAM [13B-MSP]


id0140g1101800

•  The PCM determines the engine operation conditions based on input signals and operates the injectors to inject fuel with the optimum fuel injection timing and fuel injection time (fuel injection amount).
