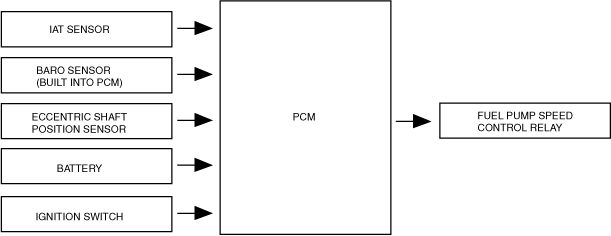

FUEL PUMP SPEED CONTROL BLOCK DIAGRAM [13B-MSP]


id0140g1102400

•  The PCM compares the fuel injection amount with the required fuel amount based on input signals and controls the fuel pump speed control relay on/off.
ar8wzn00000563
