FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION [AT]

id021300802812

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

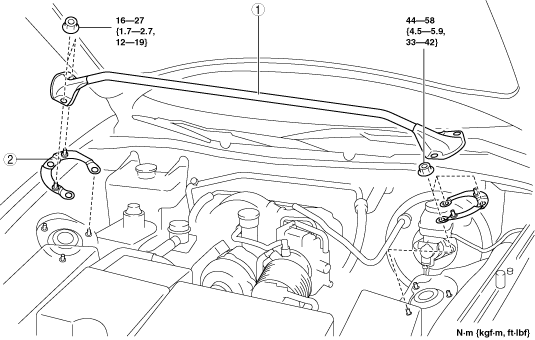

ar8uuw00001209

1	Front suspension tower bar
2	Plate (See Plate Installation Note.)

Plate Installation Note

1.  Install the plates with the identification marks facing upward.

chu0213w027
