REAR SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY

id021400802700

Caution
•  Removing /installing the shock absorber and coil spring is dangerous. The shock absorber and coil spring could fly off under tremendous pressure and cause serious injury or death, and damage the vehicle.

1.  Remove the rear shock absorber and coil spring. (See REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)

2.  Disassemble in the order indicated in the table.

3.  Assemble in the reverse order of removal.

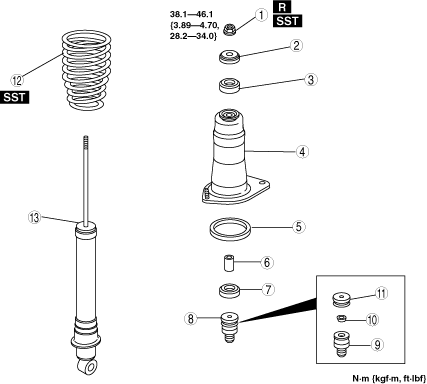

ar8uuw00001727

1
Piston rod nut
(See REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
2
Retainer
3
Bushing
4
Upper spring seat
5
Spring seat rubber
(See REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
6
Bushing
7
Spacer
8
Bound stopper and stopper casing
9
Bound stopper
10
Collar
(See REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
11
Stopper casing
12
Coil spring
(See REAR SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)
13
Rear shock absorber


Piston Rod Nut Removal Note

Warning
•  Before removing the piston rod nut, secure the shock absorber and spring in the SSTs. Otherwise, the shock absorber and spring could fly off under tremendous pressure and cause serious injury or death, or damage to the vehicle.

1.  Install the coil spring to the SST using the following procedure.

Note
•  Install the SST using a piece of clean rag to prevent the coil spring from being scratched.
(1)  Set the SST attachments (tabs) to the positions shown in the figure.
ar8jjw00002887
(2)  Install the front shock absorber and coil spring to the SST so that the coil spring is set to the position shown in the figure.
ar8jjw00002888

2.  Compress the coil spring using the SST.

3.  Remove the piston rod nut.


Coil Spring Installation Note

1.  Set the coil spring to the SSTs using cloth.

2.  Using the SSTs, compress the coil spring.

ar8uuw00001728

3.  Install the shock absorber so that the lower end of the coil spring is seated on the step of the lower spring seat.


Collar Installation Note

1.  Install the collar so that the tapered side is facing downward as shown in the figure.

ar8uuw00001729


Spring Seat Rubber Installation Note

1.  Install the spring seat rubber to the upper spring seat as shown in the figure.

chu0214w003


Rear Shock Absorber and Coil Spring Installation Note

1.  Install the coil spring with the lead lower end of the lower spring seat facing the direction shown in the figure.

ar8uuw00001730
