PROPELLER SHAFT INSPECTION
id031500800500
For Carbon-Fiber Propeller Shaft
-
Caution
-
• Replace the propeller shaft if it is dropped.
• Handle the propeller shaft with care so that the pipe is not damaged from striking surrounding objects or other impacts.
• Replace the propeller shaft if there is any chipping or warping of the pipe.
• Protect the propeller shaft from damage and handle with careful attention when working.
1. Use a dial gauge to measure the runout of the propeller shaft at each position.
-
• If it exceeds the maximum specification, replace the propeller shaft.
-
Propeller shaft maximum runout
-
0.6 mm {0.024 in}

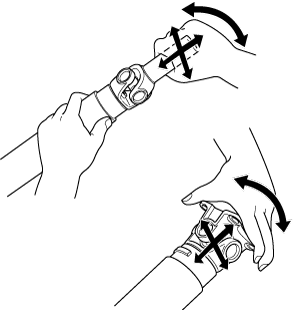

2. Inspect the play and rotation of the joint by turning the universal joint in the directions shown by the arrows.
-
Propeller shaft initial torque (Reference value)
-
0.29—0.98 N·m {3.0—10 kgf·cm, 2.7—8.6 in·lbf}
-
• If there is any play or excessive initial torque, replace the propeller shaft.
3. Verify that the propeller shaft has no bends or damage.
-
• If there is any malfunction, replace the propeller shaft.
4. Verify that there is a gap between the pipe and yoke flange.
-
• If there is any malfunction, replace the propeller shaft.
5. Verify that there is no cracking, peeling or similar damage to the seal (where the pipe and yoke connect).
-
• If there is any malfunction, replace the propeller shaft.
For Steel Propeller Shaft
1. Use a dial gauge to measure the runout of the propeller shaft at each position.
-
• If it exceeds the maximum specification, replace the propeller shaft.
-
Propeller shaft maximum runout
-
0.6 mm {0.024 in}
2. Inspect the play and rotation of the joint by turning the universal joint in the direction shown by the arrow.
-
Propeller shaft initial torque (Reference value)
-
0.29—0.98 N·m {3.0—10 kgf·cm, 2.7—8.6 in·lbf}
-
• If there is excessive play or initial torque, replace the propeller shaft.
