BRAKE SYSTEM/ABS WARNING LIGHT CONSTRUCTION/OPERATION


id041500107800

•  When the DSC and CAN lines are functioning normally, the brake system/ABS warning light illuminates when the ignition switch is turned to ON to check for a burned-out bulb, and then turns off after Approx. 3 s. At this time, while the parking brake is activated, the brake system warning light remains illuminated, however, it turns off after the parking brake is released.
•  The brake system/ABS warning light illuminates during a system malfunction, and the control is as follows:
Brake system warning light (vehicle without the malfunction warning light)* / malfunction warning light (vehicle equipped with the malfunction warning light) illuminated*:
―  If the brake switch malfunction is detected, the brake system warning light / malfunction warning light illuminates.
ABS warning light illuminated:
―  ABS control disabled.
ABS warning light illuminated and brake system warning light illuminated:
―  ABS control and EBD control disabled.
*  :Applied VIN (assumed) FE10**301152—

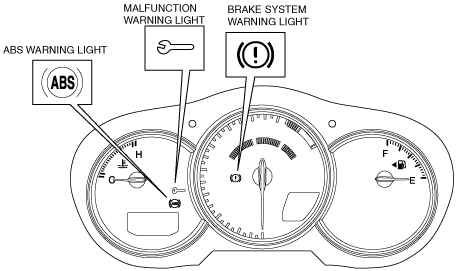

L.H.D.

ar8wzn00000767

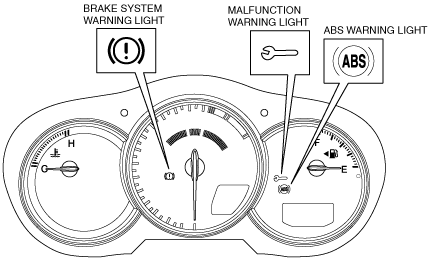

R.H.D.
