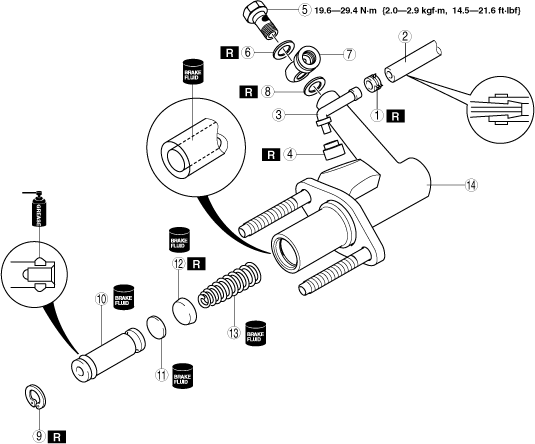

CLUTCH MASTER CYLINDER DISASSEMBLY/ASSEMBLY
id051000802300
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
ar8wzw00000722
|
|
1
|
Hose clip
|
|
2
|
Reserve tank hose
|
|
3
|
Joint
|
|
4
|
Bushing
|
|
5
|
Bolt
|
|
6
|
Packing
|
|
7
|
Connector
|
|
8
|
Packing
|
|
9
|
Snap ring
|
|
10
|
Piston, secondary cup component
|
|
11
|
Spacer
|
|
12
|
Primary cup
|
|
13
|
Return spring
|
|
14
|
Clutch master cylinder body
|
Snap Ring Disassembly/Assembly Note
1. While pressing the piston in with a cloth-wrapped pin punch to protect the push rod contacting surface, remove/install the snap ring.
