TRIPLE CONE SYNCHRONIZER MECHANISM STRUCTURE [R15M-D]


id051104103200


Features

•  A triple cone synchronizer mechanism is used for the 1st, 2nd and 3rd gears.
•  The triple cone synchronizer mechanism is a compact device capable of heavy duty meshing.
•  The synchro mechanism reduces meshing time and improves operation.
•  The triple cone synchro mechanism includes a synchronizer ring, a double cone, and an inner cone.

Structure

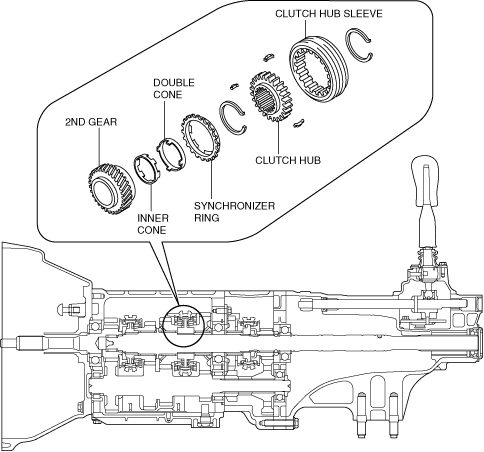

Structural view

ar8wzn00000491
