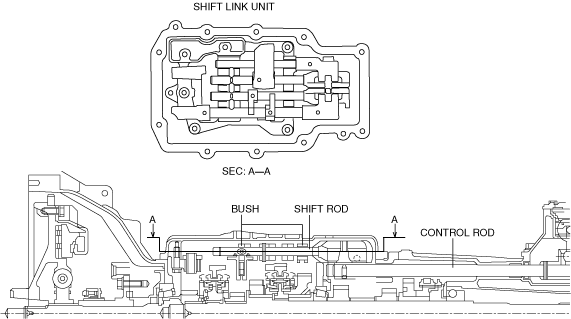

SHIFT MECHANISM STRUCTURE [P66M-D]


id051111102700

•  The shift lever stroke has been set shorter to provide optimal shift feel.
•  To realize assured shift feel, the shift link mechanism has been integrated.
•  Due to the use of metal bushings for the sliding parts of the shift rod, sliding resistance during shifting is greatly reduced, thus improving shift quality.
ar8uun00000114
