TCM REMOVAL/INSTALLATION [SJ6A-EL]

id051311250800

1.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [13B-MSP].)

2.  Remove the battery cover.

3.  Disconnect the negative battery cable.

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

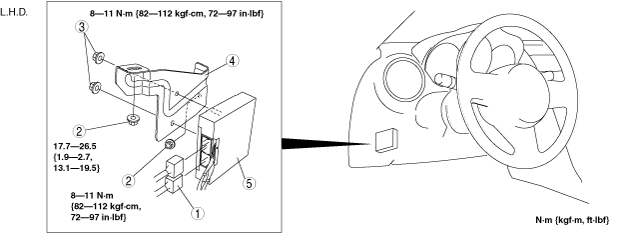

ar8wzw00000158

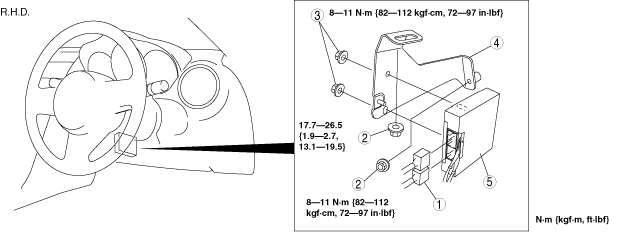

ar8wzw00000159

1	TCM connector
2	Nut
3	Nut
4	Bracket
5	TCM
