STEERING GEAR AND LINKAGE ADJUSTMENT

id061300282400

1. Remove the locknut using the SST.

ar8wzw00001388

2. Apply sealant to the threads of the adjustment cover.

3. Tighten the adjustment cover to 20—29 N·m {2.1—2.9 kgf·m, 15—21 ft·lbf}.

4. After swinging the steering rack left and right 10 times, tighten the adjustment cover again to 5.8 N·m {59 kgf·cm, 51 in·lbf}.

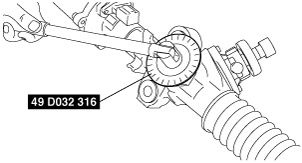

5. Loosen the adjustment cover 10—20°.

ar8wzw00001389

6. Lock the adjustment cover against rotation and tighten the locknut using the SST.

ar8wzw00001390

Tightening torque

20—29 N·m {2.1—2.9 kgf·m, 15—21 ft·lbf}

7. Measure the pinion shaft rotational torque using the SST and a pull scale.

ar8wzw00001391

• If not within the specification, repeat from Steps 1—6.

Pinion shaft rotation torque

1.2—2.0 N·m {13—20 kgf·cm, 11—17 in·lbf}

Pull scale reading: 11.2—20.0 N {1.15—2.03 kgf, 2.52—4.48 lbf}
