DTC 18
id070200803100
DTC 18 |
Air mix actuator (potentiometer) system inspection |
---|---|
POSSIBLE CAUSE
|
• Air mix actuator malfunction
• Short to ground in wiring harness between A/C amplifier connector terminals 2D and 2N
• Open circuit in wiring harness between A/C amplifier connector terminals 2P and 2N
• Connector or terminal malfunction
• Open circuit in wiring harness between A/C amplifier connector terminals 2D and 2P
|
Diagnostic Procedure
STEP |
INSPECTION |
ACTION |
|
---|---|---|---|
1
|
INSPECT AIR MIX ACTUATOR
• Inspect the air mix actuator.
• Is it normal?
|
Yes
|
Go to the next step.
|
No
|
Replace the air mix actuator.
|
||
2
|
INSPECT AIR MIX ACTUATOR (POTENTIOMETER) CIRCUIT FOR SHORT TO GROUND
• Disconnect the airflow mode actuator connector.

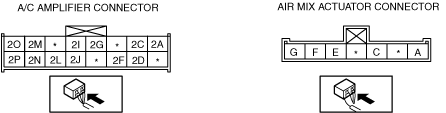

• Is the resistance between terminals 2D and 2N of the A/C amplifier connector (16-pin) 698 ohms or more?
|
Yes
|
Go to the next step.
|
No
|
Repair the wiring harness. (Short circuit)
|
||
3
|
INSPECT AIR MIX ACTUATOR (POTENTIOMETER) CIRCUIT FOR OPEN CIRCUIT
• Disconnect the A/C amplifier connector (16-pin).
• Is the resistance between terminals 2P and 2N of the A/C amplifier connector (16-pin) 6.0 kilohms or less?
|
Yes
|
Go to the next step.
|
No
|
Repair the wiring harness. (Open circuit)
|
||
4
|
INSPECT AIR MIX ACTUATOR (POTENTIOMETER) CIRCUIT FOR OPEN CIRCUIT
• Is the resistance between terminals 2D and 2P of the A/C amplifier connector (16-pin) 5.2 kilohms or less?
|
Yes
|
Inspect the connection at the A/C amplifier connector (16-pin).
|
No
|
Repair the wiring harness. (Open circuit)
|
||
![]() |
