A/C UNIT CONSTRUCTION/OPERATION

id071100100400

• The A/C unit which integrates the cooling and heater units has been adopted.

Construction

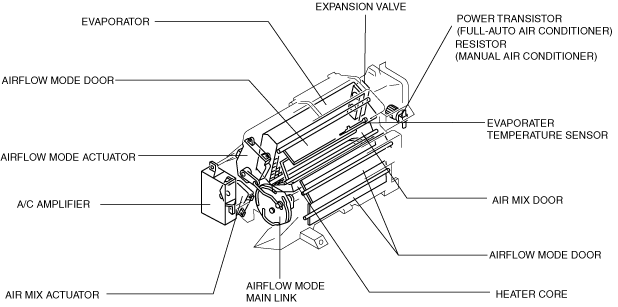

L.H.D.

ar8wzn00000236

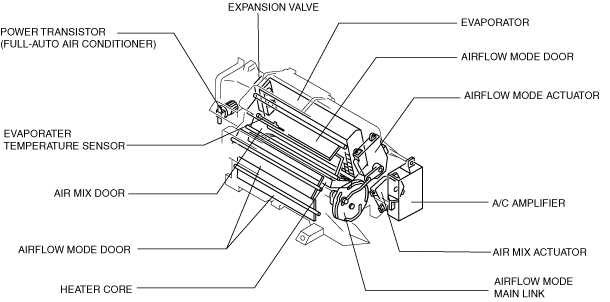

R.H.D.

ar8wzn00000237

Operation

Air Mix Door Operation

• The air mix door, installed in the A/C unit, controls HOT or COLD position, depending on the position of the temperature control dial. As a result, airflow distribution changes, and the airflow temperature is controlled.

L.H.D.

ar8wzn00000238

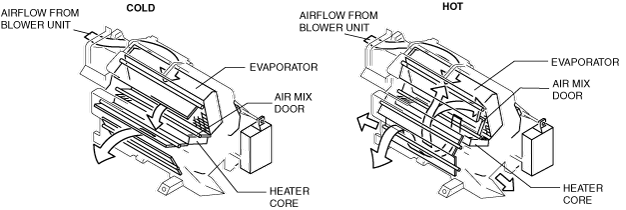

R.H.D.

ar8wzn00000239

Airflow Mode Door Operation

• The airflow mode doors move to VENT, BI-LEVEL, HEAT, HEAT/DEF, or DEFROSTER position, depending on the position of the airflow mode selector dial. As a result, airflow mode changes.

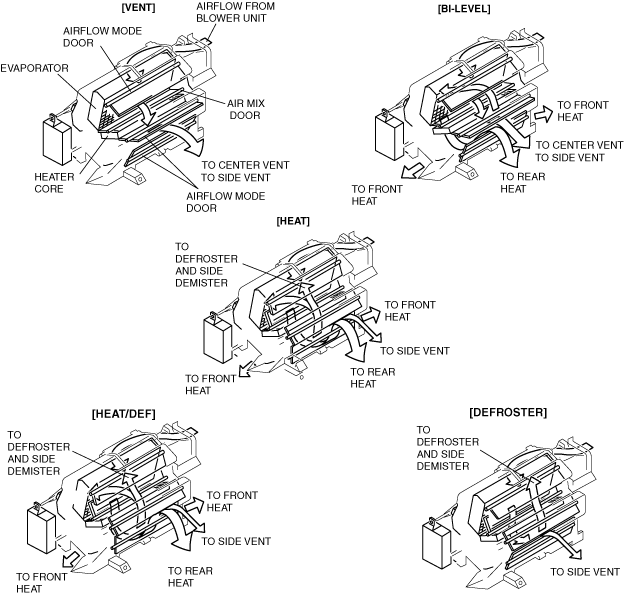

L.H.D.

ar8wzn00000240

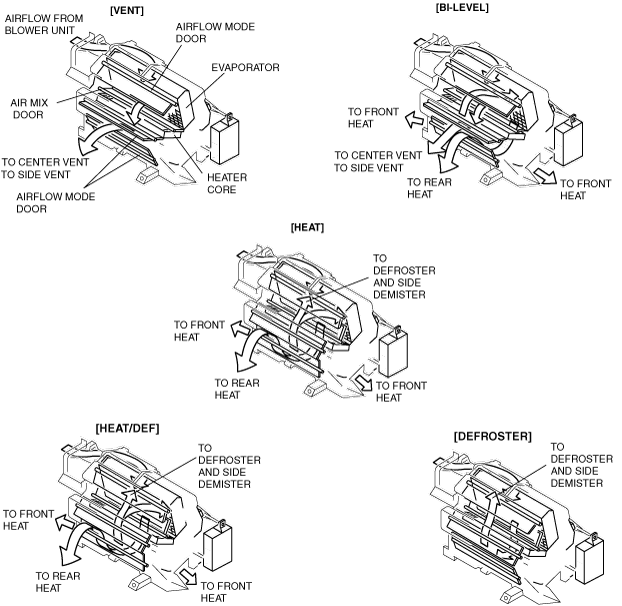

R.H.D.

ar8wzn00000241

Airflow distribution

L.H.D.

Airflow mode	Airflow volume rate (%) (Approx. quantity)
	VENT				HEAT				DEFROSTER
	Driver side		Passenger side		Driver side		Passenger side		Driver side		Passenger side
	Side	Center	Side	Center	Front	Rear	Front	Rear	Side	Center	Side	Center
VENT	25	25	25	25	—	—	—	—	—	—	—	—
BI-LEVEL	12.5	12.5	12.5	12.5	16.25	8.75	16.25	8.75	—	—	—	—
HEAT	7.5	—	—	7.5	21.125	11.375	21.125	11.375	2.4	7.6	2.4	7.6
HEAT/DEF	7.5	—	—	7.5	14.625	7.875	14.625	7.875	4.8	15.2	4.8	15.2
DEFROSTER	10	—	—	10	—	—	—	—	9.6	30.4	9.6	30.4

R.H.D.

Airflow mode	Airflow volume rate (%) (Approx. quantity)
	VENT				HEAT				DEFROSTER
	Driver side		Passenger side		Driver side		Passenger side		Driver side		Passenger side
	Side	Center	Side	Center	Front	Rear	Front	Rear	Side	Center	Side	Center
VENT	25	25	25	25	—	—	—	—	—	—	—	—
BI-LEVEL	12.5	12.5	12.5	12.5	16.25	8.75	16.25	8.75	—	—	—	—
HEAT	—	—	—	—	26.975	14.525	26.975	14.525	2.04	6.46	2.04	6.46
HEAT/DEF	—	—	—	—	16.25	8.75	16.25	8.75	6	19	6	19
DEFROSTER	—	—	—	—	—	—	—	—	12	38	12	38
