REFRIGERANT PRESSURE SWITCH CONSTRUCTION [FULL-AUTO AIR CONDITIONER]


id0740a1103700

•  A triple-pressure type has been adopted.
•  The refrigerant pressure switch is composed of the high-pressure and low-pressure switches, which cut the A/C signal to protect the refrigeration cycle if pressure in the refrigeration cycle is too high or too low; and the medium-pressure switch, which sends an cooling fan control signal according to the operation load of the cooling fan.

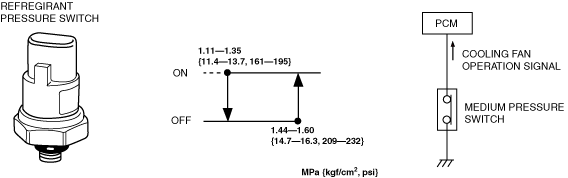

Medium-pressure Switch

•  When refrigerant pressure reaches approx. 1.44 MPa {14.7 kgf/cm2, 209 psi} or more, the contact turns on, and a cooling fan control signal is sent to the PCM.
•  When the PCM receives a cooling fan control signal while the A/C is on, it sends an operation signal to the cooling fan relay.
ar8wzn00000257

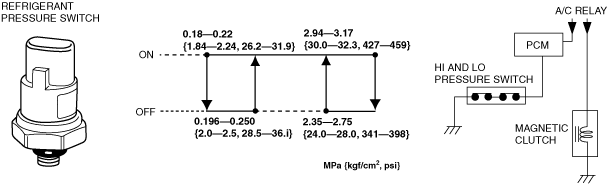

Hi and Lo-pressure Switch

•  When pressure is abnormal, the refrigerant pressure switch turns off and cuts the signal sends to the magnetic clutch, thereby stopping the A/C compressor.
ar8wzn00000258
