A/C AMPLIFIER FUNCTION [MANUAL AIR CONDITIONER]

id0740a2356300

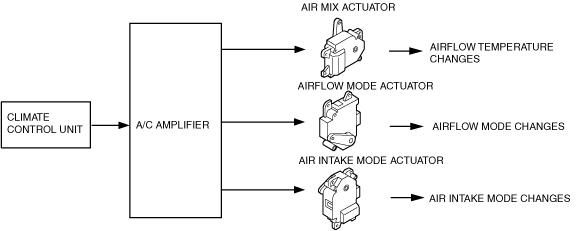

•  Receives signals from the climate control unit, and sends operation control signals to the actuators.
ar8wzn00000271

Defroster Control

•  To improve defrosting when the climate control unit airflow mode selector switch is turned to HEAT/DEF or the defroster switch is on, the defroster control switches air intake to FRESH mode, and switches A/C to ON.

Airflow mode

Air intake mode

(REC/FRESH switch pressed)

A/C ON/OFF

(A/C switch pressed)

A/C

A/C illumination
VENT, BI-LEVEL, HEAT
RECIRCULATEÛFRESH
OFF
OFF
ON
ON
HEAT/DEF, DEFROSTER
FRESH
ON
ONÛOFF
