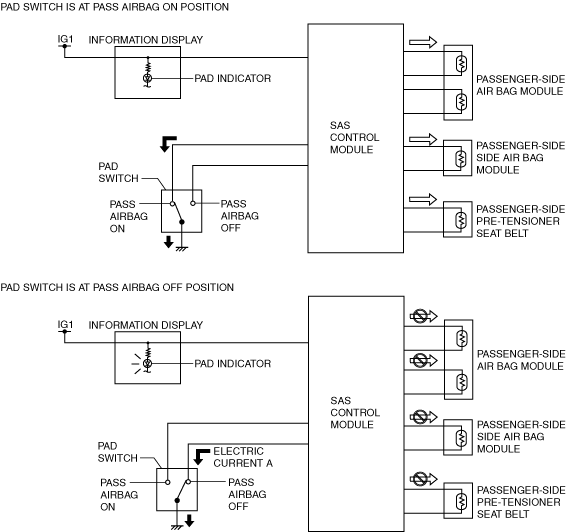

•  Consists of the PAD switch installed to the lower panel, the PAD indicator and SAS control module built into the information display on the right side.

•  The SAS control module displays a DTC if it detects a malfunction in the PAD switch or PAD indicator circuit.

•  With the key inserted, when the PAD switch is turned to the OFF position, electric current A from the SAS control module passes through the PAD switch to ground, thereby forming an off circuit. At the same time, the PAD indicator illuminates and operation (deployment) of the passenger-side air bag module, passenger-side side air bag module, and the passenger-side pre-tensioner seat belt is inhibited.
