STARTING PROCEDURE FOR ON-BOARD DIAGNOSTIC TEST MODE [CAR-NAVIGATION SYSTEM]

id0902f7358300

Note

•  All DTCs displayed in the on-board diagnostic test mode should be entered in the Audio Repair Order Form.

1.  Turn ignition switch to ACC or ON position.

2.  Turn the audio power to off.

3.  While pressing the POWER/VOLUME switch, simultaneously press the TUNE/AUDIO switch and the DISP switch for 1 s or more.

With RDS (radio data system)

ar8wzw00001242

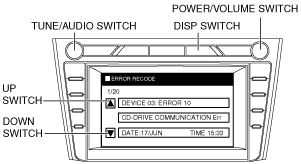

Without RDS (radio data system)

ar8wzw00001251

Note

•  If several DTCs are in the memory, they can be displayed using the UP/DOWN switch.

4.  To stop the on-board diagnostic test mode, ignition is switched to LOCK position.
