DETERMINING MALFUNCTIONING PART (HS-CAN) [MULTIPLEX COMMUNICATION SYSTEM (R.H.D.)]
id0902j4846700
-
Caution
-
• If the malfunctioning part is detected in the communication line, before disconnecting the related connector for inspection, press the connector in the connection direction to verify that there is no looseness or disconnection.
• When disconnecting the connector, verify that there is no damage, deformation, or corrosion of the connector terminals.
1. Verify the CAN system-related module DTCs and the failed module on the M-MDS screen.
2. Refer to “DTC Output Pattern and Malfunctioning Part” and find the area linked from the malfunctioning part.
-
Note
-
• A hyphen (-) in the DTC output pattern cell indicates that the DTC may be displayed depending on the malfunction detection conditions. If it is not displayed, the malfunctioning part can be determined by checking only the crosses (×).
-
― Instrument cluster: U1900
― EPS control module: U1900
― DSC HU/CM: U1900
― Keyless control module: U1147, U2510
― Steering angle sensor: U1900
3. Inspect the possible cause and inspection item of the applicable malfunctioning part.
4. Perform the DTC inspection after the repair procedure.
-
DTC Output Pattern and Malfunctioning Part
Cross (×): Displayed
Hyphen (-): May or may not be displayed
|
M-MDS display
|
DTC output pattern and malfunctioning part
|
|
DTC output module
|
DTC
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
H
|
I
|
J
|
K
|
L
|
|
PCM
(PCM)
|
U0101
|
|
|
|
|
|
|
|
×
|
|
|
|
|
|
U0121
|
|
|
|
×
|
|
|
|
|
|
|
|
×
|
|
U0155
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
U0167
|
|
|
|
|
|
×
|
|
|
|
|
|
|
|
EPS
(EPS control module)
|
U01900
|
×
|
|
|
|
|
|
|
|
|
|
|
|
|
U2023
|
|
|
|
×
|
|
|
|
|
|
|
|
|
|
ABS
(DSC HU/CM)
|
U0100
|
×
|
|
×
|
|
|
|
|
|
|
|
|
|
|
U0101
|
|
|
|
|
|
|
|
×
|
|
|
|
|
|
U0155
|
|
|
|
|
|
|
|
|
|
|
|
×
|
|
U1900
|
-
|
|
-
|
|
|
|
|
|
|
|
|
|
|
U2023
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RKE
(Keyless control module)
|
U1147
|
|
|
|
|
-
|
|
|
|
|
|
|
|
|
U2510
|
-
|
|
-
|
|
|
|
|
|
|
|
|
|
|
TCM*1
(TCM)
|
U0100
|
×
|
|
×
|
|
×
|
|
×
|
|
|
|
|
|
|
U0121
|
|
|
|
×
|
×
|
|
×
|
|
|
|
|
|
|
SASM
(Steering angle sensor)
|
U1900
|
|
|
|
×
|
×
|
|
×
|
|
|
×
|
|
|
|
IC
(Instrument cluster)
|
U1900
|
×
|
×
|
×
|
×
|
×
|
×
|
×
|
|
×
|
×
|
|
|
|
U2023
|
|
|
|
×
|
×
|
|
×
|
|
-
|
-
|
|
|
|
M-MDS display module
|
“Fail” display pattern
|
|
PCM
|
×
|
|
×
|
|
×
|
|
×
|
|
×
|
×
|
|
|
|
EPS
|
|
×
|
×
|
|
×
|
|
×
|
|
×
|
×
|
|
|
|
ABS
|
|
|
|
×
|
×
|
|
×
|
|
×
|
×
|
|
|
|
RKE
|
|
|
|
|
|
×
|
×
|
|
×
|
×
|
|
|
|
TCM*1
|
|
|
|
|
|
|
|
×
|
|
×
|
|
|
|
SASM
|
|
|
|
|
|
|
|
|
|
|
×
|
|
|
IC
|
|
|
|
|
|
|
|
|
|
|
|
×
|
*1 :AT

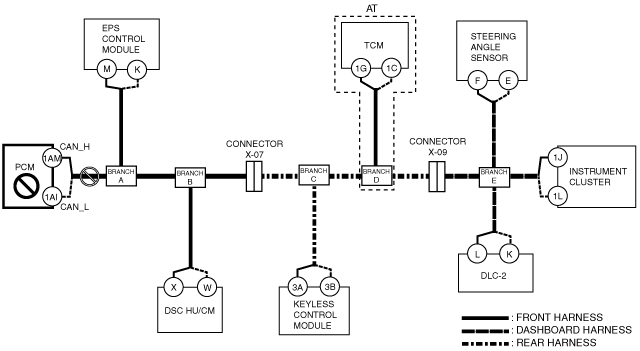

A
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between PCM and branch A
• PCM malfunction

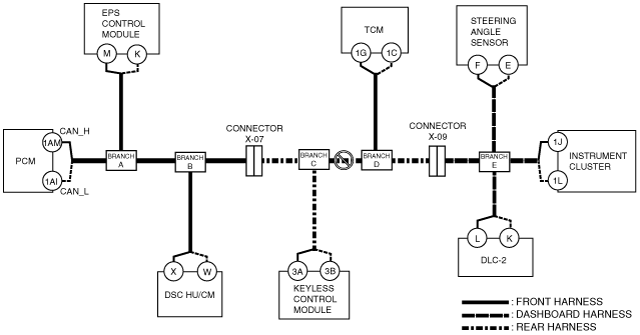

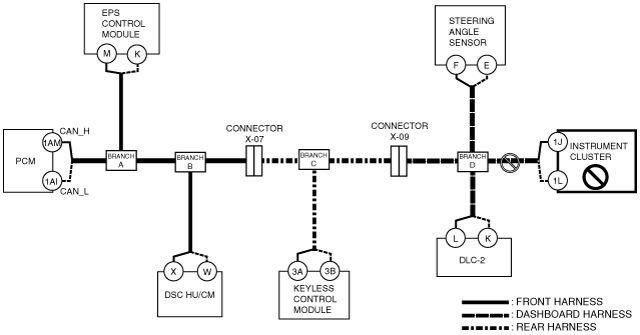

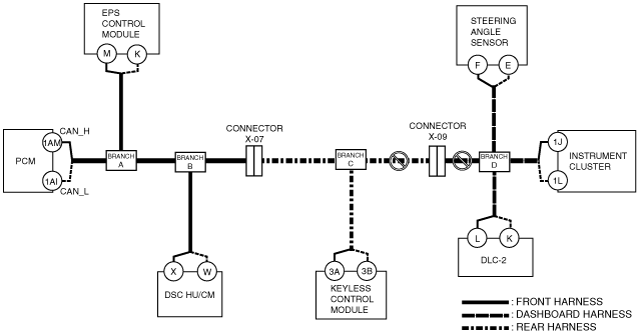

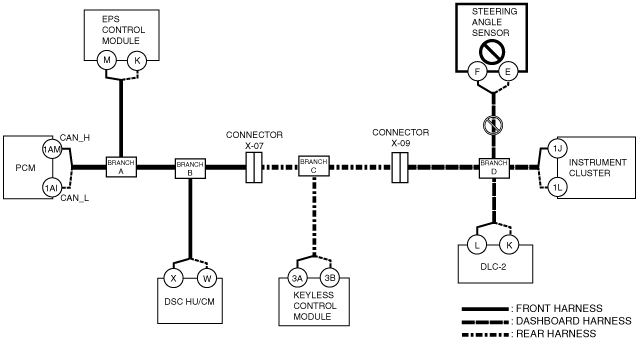

System wiring diagram
Inspection item
-
• PCM connector
• Wiring harness between PCM terminal 1AM and branch A
• Wiring harness between PCM terminal 1AI and branch A
• PCM

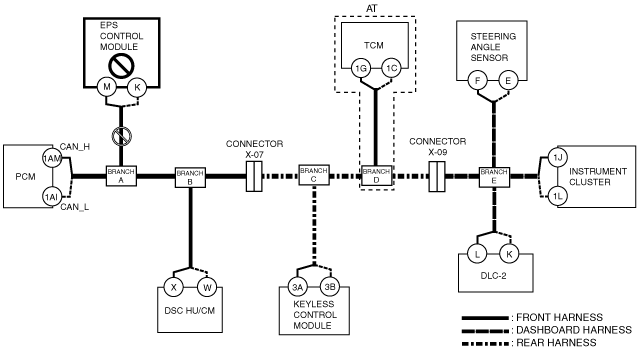

B
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between EPS control module and branch A
• EPS control module malfunction
System wiring diagram
Inspection item
-
• EPS control module connector
• Wiring harness between EPS control module terminal M and branch A
• Wiring harness between EPS control module terminal K and branch A
• EPS control module

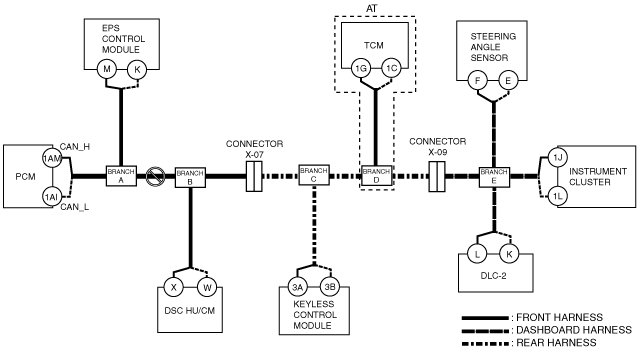

C
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between branch A and branch B
System wiring diagram
Inspection item
-
• Wiring harness between branch A and branch B

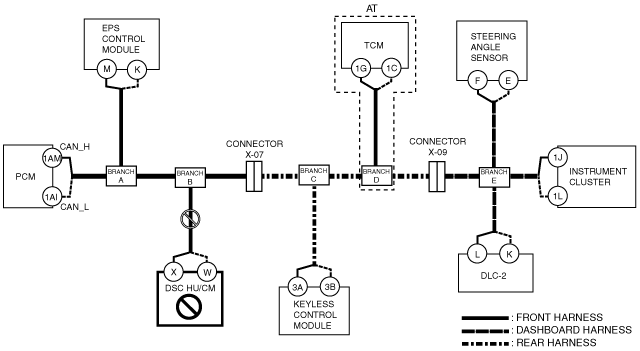

D
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between DSC HU/CM and branch B
• DSC HU/CM malfunction
System wiring diagram
Inspection item
-
• DSC HU/CM connector
• Wiring harness between DSC HU/CM terminal X and branch B
• Wiring harness between DSC HU/CM terminal W and branch B
• DSC HU/CM
E
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between branch B and connector X-07
• Open circuit in wiring harness between connector X-07 and branch C
• Connector X-07 malfunction
System wiring diagram
Inspection item
-
• Connector X-07
• Wiring harness between branch B and connector X-07
• Wiring harness between connector X-07 and branch C

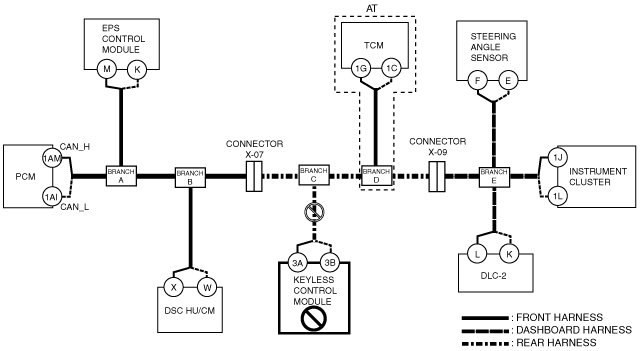

F
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between keyless control module and branch C
• Keyless control module malfunction
System wiring diagram
Inspection item
-
• Keyless control module connector
• Wiring harness between keyless control module terminal 3A and branch C
• Wiring harness between keyless control module terminal 3B and branch C
• Keyless control module
G
Possible cause
-
• Open circuit in wiring harness between branch C and branch D
System wiring diagram
Inspection item
-
• Wiring harness between branch C and branch D

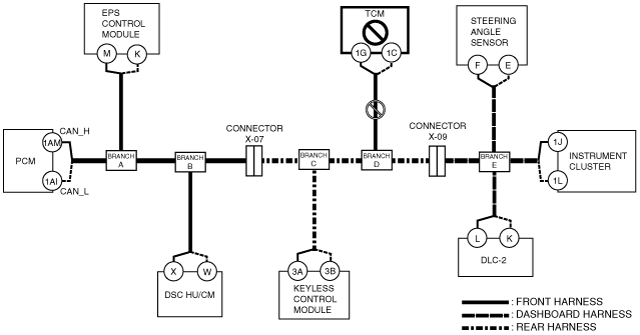

H
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between TCM and branch D
• TCM malfunction
System wiring diagram
Inspection item
-
• TCM connector
• Wiring harness between TCM terminal 1G and branch D
• Wiring harness between TCM terminal 1Q and branch D
• TCM
I
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between branch C and connector X-09
• Open circuit in wiring harness between connector X-09 and branch D
• Connector X-09 malfunction
System wiring diagram
Inspection item
-
• Connector X-09
• Wiring harness between branch C and connector X-09
• Wiring harness between connector X-09 and branch D
J
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between branch D and connector X-09
• Open circuit in wiring harness between connector X-09 and branch E
• Connector X-09 malfunction
System wiring diagram
Inspection item
-
• Connector C-09
• Wiring harness between branch D and connector X-09
• Wiring harness between connector X-09 and branch E

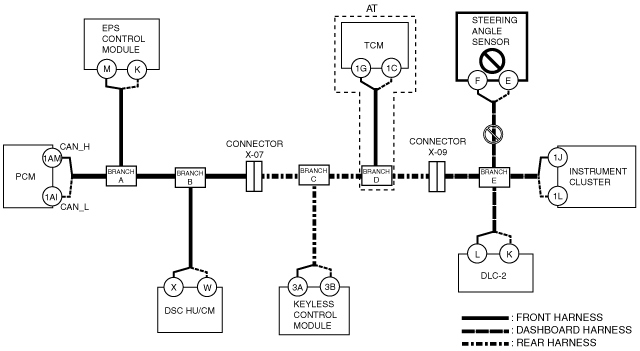

K
AT
-
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between steering angle sensor and branch E
• Steering angle sensor malfunction
System wiring diagram
-
Inspection item
-
• Steering angle sensor connector
• Wiring harness between steering angle sensor terminal F and branch E
• Wiring harness between steering angle sensor terminal E and branch E
• Steering angle sensor
MT
-
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between steering angle sensor and branch D
• Steering angle sensor malfunction
System wiring diagram
-
Inspection item
-
• Steering angle sensor connector
• Wiring harness between steering angle sensor terminal F and branch D
• Wiring harness between steering angle sensor terminal E and branch D
• Steering angle sensor

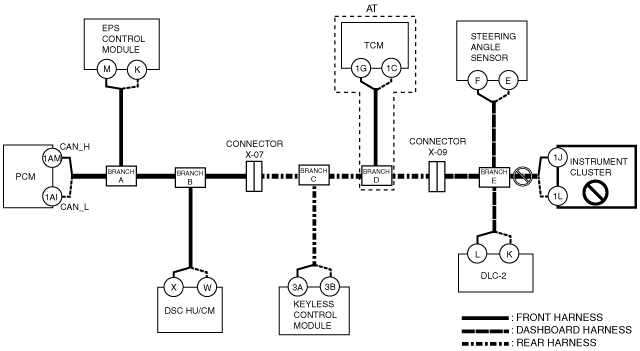

L
AT
-
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between instrument cluster and branch E
• Instrument cluster malfunction
System wiring diagram
-
Inspection item
-
• Instrument cluster connector
• Wiring harness between instrument cluster terminal 1J and branch E
• Wiring harness between instrument cluster terminal 1L and branch E
• Instrument cluster
MT
-
Possible cause
-
• Connector terminal disconnection, poor contact, damage, deformation, corrosion
• Open circuit in wiring harness between instrument cluster and branch D
• Instrument cluster malfunction
System wiring diagram
-
Inspection item
-
• Instrument cluster connector
• Wiring harness between instrument cluster terminal 1J and branch D
• Wiring harness between instrument cluster terminal 1L and branch D
• Instrument cluster
