FRONT BUMPER DISASSEMBLY/ASSEMBLY

id091000800400

Small Type

1. To disassemble the front bumper, remove the following parts:

(1) Front fog lights (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

(2) Headlight cleaner hose (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)

(3) Headlight cleaner nozzles (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER NOZZLE REMOVAL.) SeeHEADLIGHT CLEANER NOZZLE INSTALLATION.)

(4) Headlight cleaner actuator (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.

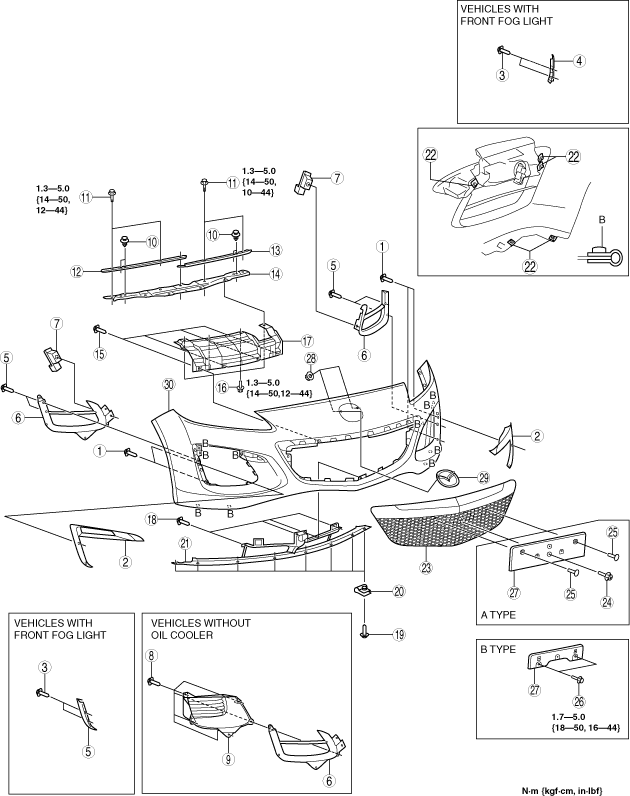

ar8wzw00000970

1

Screw A

2

Front fog light hole cover (Vehicles without front fog lights)

3

Screw B

4

Front fog light cover (Vehicles with front fog lights)

5

Screw D

6

Front fog light hole cover

7

Connector cover (Vehicles without front fog lights)

8

Screw E

9

Front fog light hole cover(Vehicles without oil cooler)

10

Fastener

11

Bolt A

12

Set plate (RH)

13

Set plate (LH)

14

Front bumper retainer

15

Screw F

16

Bolt B

17

Front bumper retainer

18

Screw G

19

Screw H

20

Clip nut A

21

Airdam skirt

22

Clip nut B

23

Front bumper mesh

24

Screw I

25

Rivet

26

Bolt C

27

License plate holder

28

Nut

29

Mascot

30

Front bumper fascia

Large Type

1. To disassemble the front bumper, remove the following parts:

(1) Front fog lights (Vehicles with the front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)

(2) Headlight cleaner hose (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION.)

(3) Headlight cleaner nozzles (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER NOZZLE REMOVAL.) SeeHEADLIGHT CLEANER NOZZLE INSTALLATION.)

(4) Headlight cleaner actuator (Vehicles with the headlight cleaner) (See HEADLIGHT CLEANER ACTUATOR REMOVAL/INSTALLATION.)

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.

ar8wzw00000971

1

Screw A

2

Front fog light hole cover (Vehicles without front fog lights)

3

Screw B

4

Front fog light cover (Vehicles with front fog lights)

5

Screw D

6

Front fog light hole cover

7

Connector cover (Vehicles without front fog lights)

8

Fastener

9

Bolt A

10

Set plate (RH)

11

Set plate (LH)

12

Front bumper retainer

13

Screw E

14

Bolt B

15

Front bumper retainer

16

Rivet A

17

Front bumper fascia

18

Bolt C

19

Rivet B

20

Airdam skirt

21

Screw F

22

Screw G

23

Clip nut A

24

Airdam skirt

25

Clip nut B

26

Front bumper mesh

27

Screw H

28

Rivet

29

Bolt D

30

License plate holder

31

Nut

32

Mascot

33

Front bumper fascia

1	Screw A
2	Front fog light hole cover (Vehicles without front fog lights)
3	Screw B
4	Front fog light cover (Vehicles with front fog lights)
5	Screw D
6	Front fog light hole cover
7	Connector cover (Vehicles without front fog lights)
8	Screw E
9	Front fog light hole cover(Vehicles without oil cooler)
10	Fastener
11	Bolt A
12	Set plate (RH)
13	Set plate (LH)
14	Front bumper retainer
15	Screw F
16	Bolt B
17	Front bumper retainer
18	Screw G
19	Screw H
20	Clip nut A
21	Airdam skirt
22	Clip nut B
23	Front bumper mesh
24	Screw I
25	Rivet
26	Bolt C
27	License plate holder
28	Nut
29	Mascot
30	Front bumper fascia
