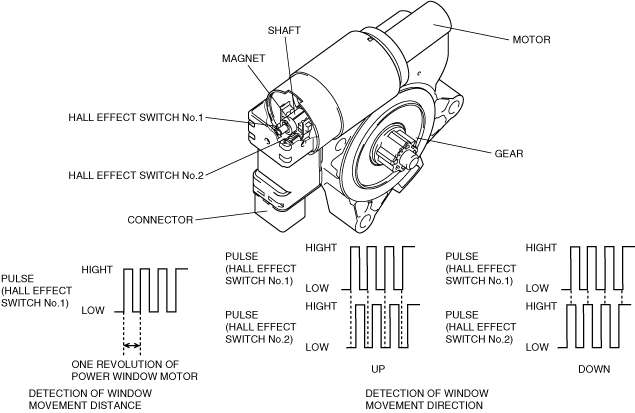

POWER WINDOW MOTOR CONSTRUCTION


id091200516200

•  Consists of a motor, connector, and gear.
•  Two Hall effect switches are located in the connector.
•  The Hall effect switch utilizes magnets set on a rotating axis to detect the motor rotation, and outputs a synchronized pulse to the power window main switch.
•  Hall effect switch No. 1 outputs one pulse cycle for each rotation of the power window motor axle. Accordingly, the power window main switch detects the rotational speed of the power window motor.
•  The power window main switch detects the rotational direction of the power window motor by the difference between high and low pulse points from Hall effect switch No. 1 and 2.
