REAR WINDOW DEFROSTER FUNCTION OPERATION

id091200519700

• Defogs the rear window glass and the right and left outer mirror with hot-wire print.

• When the rear window defroster switch is turned on, the rear window defroster and the left and right heated outer mirrors get activated.

• The rear defroster and the heated outer mirror operate as follows:

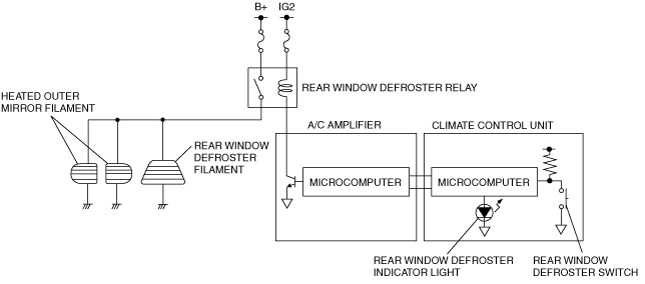

1. The microcomputer within the climate control unit turns on the rear window defroster relay, and the rear window defroster and the heated outer mirror get activated.

ar8wzn00000706

2. After approx. 15 min have elapsed from the time the rear window defroster switch was turned on, the timer control of the climate control unit turns off the rear window defroster relay to stop the operation of the rear window defroster and the heated outer mirror.
