OUTER MIRROR HEATER CONSTRUCTION OPERATION


id091200521900

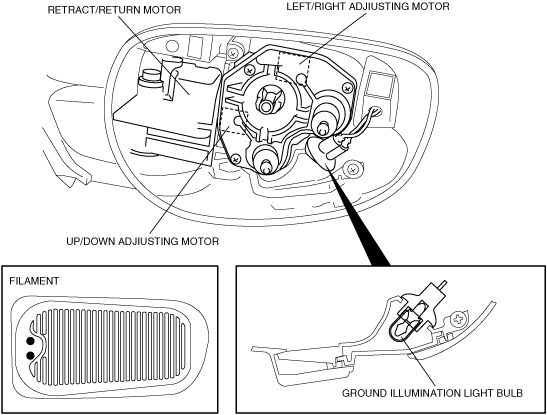

•  Glass surface is covered with water-repellent thin film for better water-shedding quality.
•  Incorporates mirror glass adjustment motor and storage/return motor.
•  A filament is attached to the rear side of the mirror glass.
•  A built-in ground illumination light, which illuminates when the keyless entry system is activated or the doors are opened or closed, has been adopted. For details of the ground illumination system, refer to INTERIOR LIGHTING CONTROL SYSTEM OPERATION
ar8wzn00000705
