REAR DOOR GLASS REMOVAL/INSTALLATION

id091200800500

1.  Remove the rear door lower trim. (See REAR DOOR LOWER TRIM REMOVAL/INSTALLATION.)

2.  Remove the rear door upper trim. (See REAR DOOR UPPER TRIM REMOVAL/INSTALLATION.)

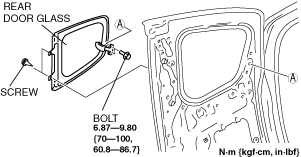

3.  Pull up the rear door weatherstrip and remove the screw.

ar8uuw00002039

4.  Remove the bolts.

5.  Remove the rear door glass.

6.  Install in the reverse order of removal.
