POWER SEAT SWITCH INSPECTION


id091300801100


Power Seat Switch

1.  Disconnect the power seat switch connector.

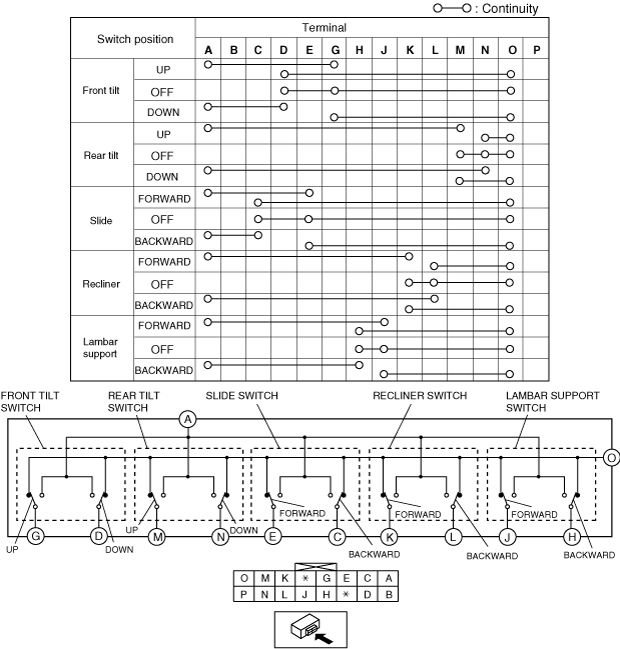

2.  Verify that the continuity between the power seat switch terminals is as indicated in the table.

•  If not as indicated in the table, replace the power seat switch.
ar8uuw00002004
