FRONT SEAT SIDE COVER REMOVAL/INSTALLATION


id091300912100


Vehicles With Power Seat System


L.H.D.

1.  Disconnect the negative battery cable.

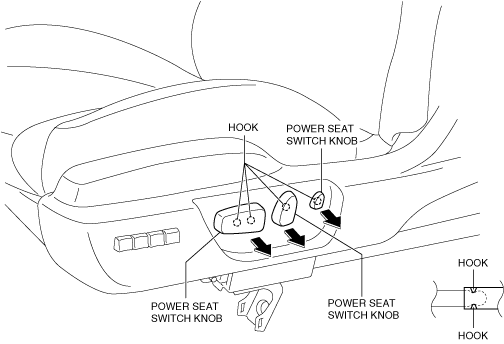

2.  Pull the power seat switch knobs in the direction of arrow, while remove the hook.

ar8uuw00001982

3.  Pull the side cover in the order of (1), (2), (3), (4), (5) shown in the figure to disengage the hook and tab.

ar8uuw00002469

4.  Remove the screw F.

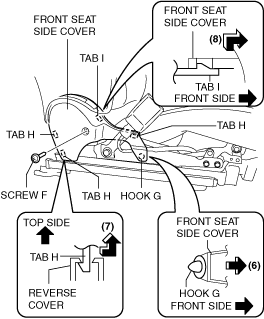

5.  Pull the side cover in the order of (6), (7), (8) shown in the figure to disengage the hook G, tab H and I.

ar8uuw00002470

6.  Remove the front seat side cover.

7.  Install in the reverse order of removal.


R.H.D.

1.  Disconnect the negative battery cable.

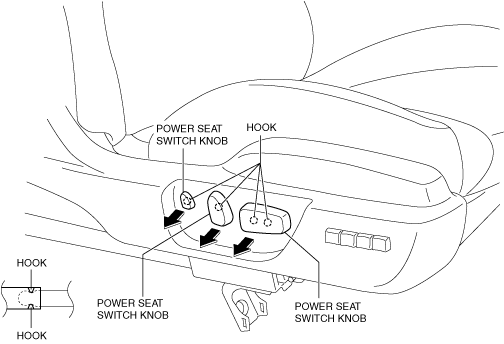

2.  Pull the power seat switch knobs in the direction of arrow, while remove the hook.

ar8wzw00001118

3.  Pull the side cover in the order of (1), (2), (3), (4), (5) shown in the figure to disengage the hook and tab.

ar8wzw00001119

4.  Remove the screw F.

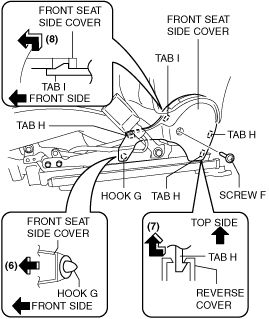

5.  Pull the side cover in the order of (6), (7), (8) shown in the figure to disengage the hook G, tab H and I.

ar8wzw00001120

6.  Remove the front seat side cover.

7.  Install in the reverse order of removal.


Vehicles Without Power Seat System


L.H.D.

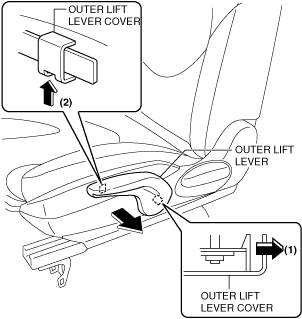

1.  Operate the lift lever in the direction of arrow (1) shown in the figure. (Driver's seat) (Vehicles with seat lifter)

ar8uuw00001985

2.  Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the outer lift lever cover by disengaging the tab. (Driver's seat) (Vehicles with seat lifter)

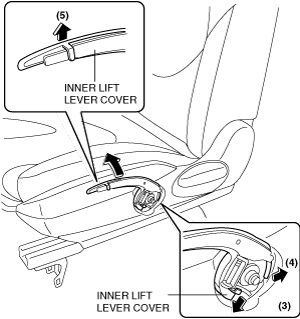

3.  Open the tab in the directions of the arrows (3) and (4) to pull out the inner rift lever cover in the direction of the arrow (5) as shown in the diagram.

ar8uuw00001986

4.  Perform removal operation following the procedure below.

Standard Type
1.  After operating the recliner knob in the upward direction (6), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (7).
ar8uuw00001987
Caution
•  The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.
2.  Remove the screw A.
ar8uuw00002471

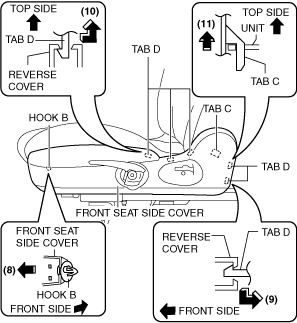

3.  Pull the side cover in the order of (8), (9), (10), (11) shown in the figure to disengage the hook B, tab C and D.
ar8uuw00002472
4.  Remove the screw E.
5.  Pull the side cover in the order of (12), (13) shown in the figure to disengage the tab F and hook G.
ar8uuw00002473
Sports Type
1.  Uninstall the recliner dial in the direction of the arrow (1).
ar8wzw00001121
2.  Pull the side cover in the order of (2), (3), (4) shown in the figure to disengage the hook B and tab C.
ar8wzw00001122
3.  Remove the screw D.

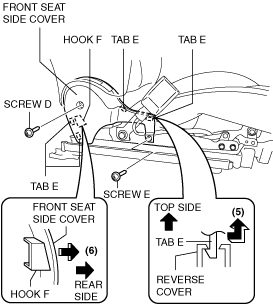

4.  Pull the side cover in the order of (5), (6) shown in the figure to disengage the tab E and hook F.
ar8uuw00002475

5.  Remove the front seat side cover.

6.  Install in the reverse order of removal.


R.H.D.

1.  Operate the lift lever in the direction of arrow (1) shown in the figure. (Driver's seat) (Vehicles with seat lifter)

ar8wzw00001123

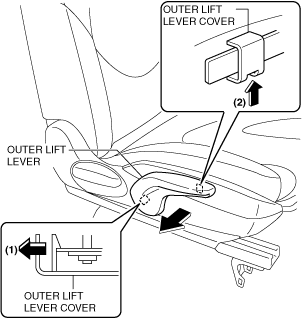

2.  Insert a fastener remover from the position of arrow (2) shown in the figure, and remove the outer lift lever cover by disengaging the tab. (Driver's seat) (Vehicles with seat lifter)

3.  Open the tab in the directions of the arrows (3) and (4) to pull out the inner rift lever cover in the direction of the arrow (5) as shown in the diagram.

ar8wzw00001124

4.  Perform removal operation following the procedure below.

Standard Type
1.  After operating the recliner knob in the upward direction (6), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (7).
ar8wzw00001125
Caution
•  The seat back folds forward when the recliner knob is operated. Be careful when operating the recliner knob.
2.  Remove the screw A.
ar8wzw00001126

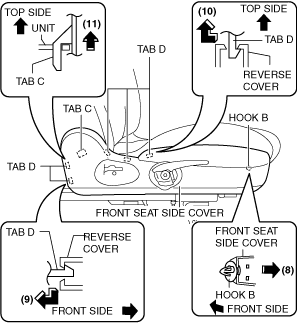

3.  Pull the side cover in the order of (8), (9), (10), (11) shown in the figure to disengage the hook B, tab C and D.
ar8wzw00001127
4.  Remove the screw E.

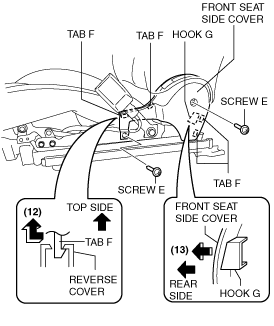

5.  Pull the side cover in the order of (12), (13) shown in the figure to disengage the tab F and hook G.
ar8wzw00001128
Sports Type
1.  Uninstall the recliner dial in the direction of the arrow (1).
ar8wzw00001129

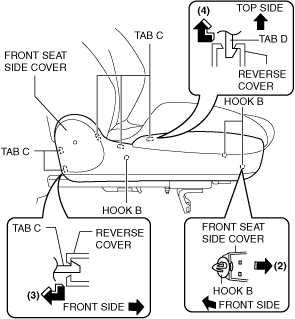

2.  Pull the side cover in the order of (2), (3), (4) shown in the figure to disengage the hook B and tab C.
ar8wzw00001130
3.  Remove the screw D.

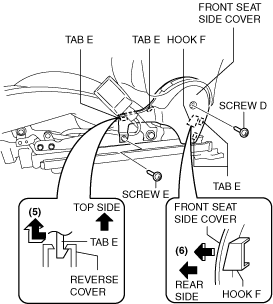

4.  Pull the side cover in the order of (5), (6) shown in the figure to disengage the tab E and hook F.
ar8wzw00001131

5.  Remove the front seat side cover.

6.  Install in the reverse order of removal.
