KEYLESS ENTRY SYSTEM OPERATION


id091400521400

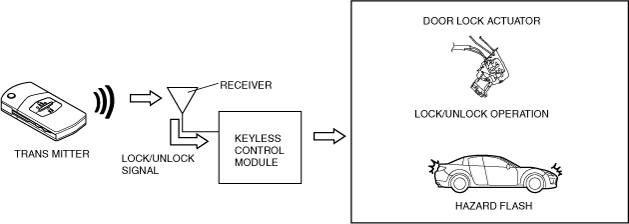

Lock/unlock

•  When the LOCK/UNLOCK buttons are operated at a distance (within approx. 2.5 m (8.2 ft)) from the vehicle, all doors lock/unlock.
•  An auto-lock function has been adopted which automatically locks the doors if any one of the following operations is not performed within 30 s after the UNLOCK button on the transmitter is pressed.
―  Open any door
―  Locking/unlocking using the driver's front door key cylinder.
―  Locking/unlocking using the driver's door lock knob.
―  Ignition key is inserted into the steering lock.
•  To prevent improper operation while the vehicle is moving, the doors cannot be locked/unlocked by operating the LOCK/UNLOCK buttons on the transmitter while the key is inserted in the steering lock.
•  An answer-back function has been adopted which flashes the hazard warning lights when the doors are locked/unlocked using the LOCK/UNLOCK buttons on the transmitter.
―  When the LOCK button is pressed, the hazard warning lights flash once
―  When the UNLOCK button is pressed, the hazard warning lights flash two times
Note
•  Vehicles with the theft-deterrent system are connected to the theft-deterrent set/cancel.
