FUEL-FILLER LID OPENER REMOVAL/INSTALLATION

id091400804700

1.  To remove the fuel-filler lid opener, remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

2.  When removing the fuel-filler lid opener lever, perform the following procedure:

(1)  Remove the inner scuff plate (driver"s side). (See INNER SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Remove the front side trim (driver"s side). (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Remove the fasteners and the wiring harness clips, and then partially peel back the floor covering so that the fuel-filler lid opener lever can be removed.

3.  When removing the fuel-filler lid opener cable, perform the following procedure:

(1)  Partially peel back the trunk mat.

(2)  Remove the rear seat (driver"s side). (See REAR SEAT REMOVAL/INSTALLATION)

(3)  Remove the tire house trim (driver"s side). (See TIRE HOUSE TRIM REMOVAL/INSTALLATION.)

(4)  Partially peel back the floor covering so that the fuel-filler lid opener cable can be removed.

4.  Remove in the order indicated in the table.

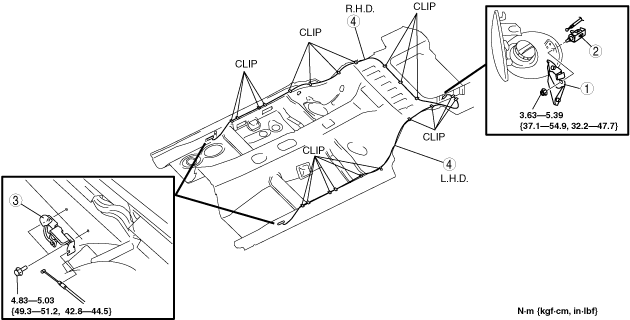

ar8wzw00000013

1	Stopper bracket
2	Fuel-filler lid opener
3	Fuel-filler lid opener lever
4	Fuel-filler lid opener cable

5.  Install in the reverse order of removal.

6.  Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT.)
