REAR SPOILER REMOVAL

id091600802500

Small Type

1.  While cutting the double-sided adhesive tape using a flathead screwdriver or a razor, separate the rear spoiler from the trunk lid.

Warning

•  Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

Caution

•  Do not scratches or damage the body paint when cut the double-sided adhesive tape with a razor.

•  Affix protective tape to the trunk lid to prevent scratches or damage.

ar8uuw00002559

2.  Detach the clips and remove the rear spoiler.

Large Type

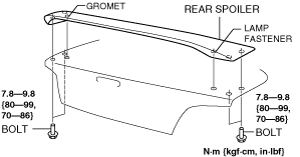

1.  Remove the bolts.

ar8uuw00001943

2.  Remove the rear spoiler.
