SIDE STEP MOLDING REMOVAL

id091600804400

1.  Remove the rivets A.

ar8uuw00001949

2.  Remove the clip B in the direction of the arrow with using a fastener remover.

ar8uuw00001950

Note

•  Keep the removed clip B half-placed for the later process.

3.  Remove the clip B in the direction of the arrow with using a fastener remover.

ar8uuw00001951

Note

•  Keep the removed clip B half-placed for the later process.

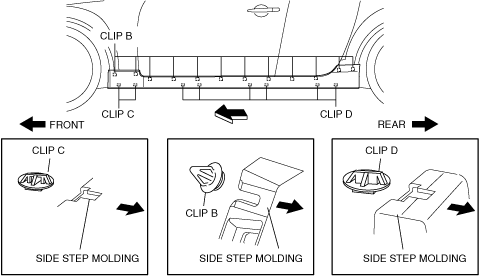

4.  Slide the side step molding in the direction of the arrow and remove it from the clip B,C and D.

ar8uuw00001952

5.  After removing the side step molding, remove the clip B,C and D from the body with using a fastener remover.

6.  Remove the side step molding.
