FRONT MUDGUARD REMOVAL/INSTALLATION

id091600812300

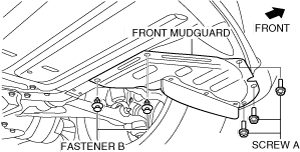

1.  Remove the screws A and fasteners B.

ar8uuw00001955

2.  Remove fasteners C.

ar8uuw00001956

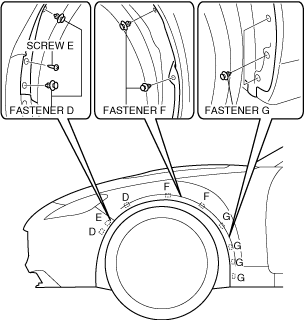

3.  Remove fasteners D, F, G and screw E.

ar8uuw00001957

4.  Remove the fasteners H to uninstall the front mudguard in the direction of the arrow.

ar8uuw00001958

5.  Install in the reverse order of removal.
