CONSOLE REMOVAL/INSTALLATION

id091700801200

1.  Disconnect the negative battery cable.

2.  Remove the rear seat. (See REAR SEAT REMOVAL/INSTALLATION.)

3.  Remove the rear package trim. (See REAR PACKAGE TRIM REMOVAL/INSTALLATION.)

4.  Detach clips A and remove the upper panel.

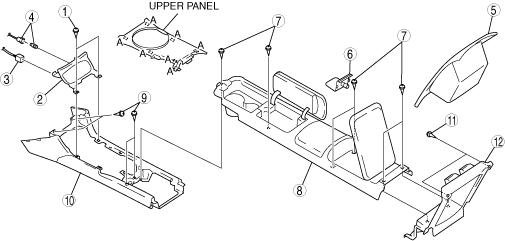

5.  Disassemble in the order indicated in the table.

ar8uuw00002264

1	Screw A
2	Ashtray panel(SeeAshtray Panel Removal Note)
3	Cigarette lighter connector
4	Ashtray illumination(See ASHTRAY ILLUMINATION BULB REMOVAL/INSTALLATION)
5	Storage compartment
6	Hole cover
7	Screw B
8	Rear console
9	Screw C
10	Front console
11	Screw D
12	Under cover

6.  Install in the reverse order of removal.

Ashtray Panel Removal Note

1.  Remove the ashtray panel using a flathead screwdriver wrapped with protective tape.
