SUNVISOR REMOVAL/INSTALLATION

id091700801700

1.  Disconnect the negative battery cable.

2.  Remove the screws.

chu0917w127

3.  Disconnect the vanity mirror illumination connector.

4.  Remove the sunvisor.

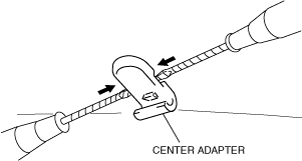

5.  Press the center adapter tabs in the directions of the arrows using two tape-wrapped flathead screwdrivers and remove it.

chu0917w139

6.  Install in the reverse order of removal.
