VENTILATOR GRILLE REMOVAL/INSTALLATION

id091700804600

Driver"s Side

1.  Disconnect the negative battery cable.

2.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

3.  Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

4.  Remove the dashboard garnish. (See DASHBOARD GARNISH REMOVAL/INSTALLATION.)

5.  Pull the driver-side demister grille upward and detach clip A.

L.H.D.

ar8uuw00001930

R.H.D.

ar8wzw00001080

6.  Pull the driver-side demister grille outward and remove it.

7.  Install in the reverse order of removal.

Passenger"s Side

1.  Disconnect the negative battery cable. and wait the one minute.

2.  Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

3.  Remove the passenger-side air bag module. (See PASSENGER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

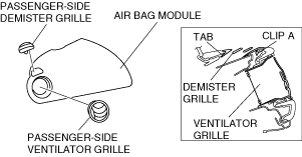

4.  Pull the passenger-side demister grille upward and detach clip A.

L.H.D.

ar8uuw00001931

R.H.D.

ar8wzw00001081

5.  Pull the passenger-side demister grille outward and remove it.

6.  Install in the reverse order of removal.

Center

1.  Remove the center panel. (See CENTER PANEL REMOVAL/INSTALLATION.)

2.  Remove the screws.

ar8uuw00001932

3.  Install in the reverse order of removal.
