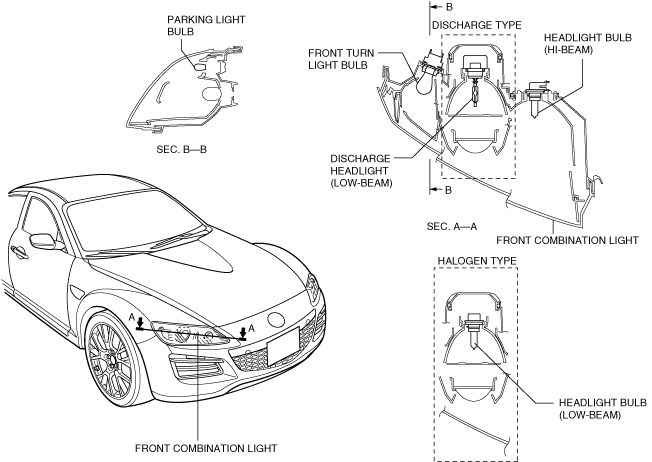

FRONT COMBINATION LIGHT CONSTRUCTION


id091800100700

•  A headlight with built-in front turn/parking light has been adopted for design improvement.
•  Projector type headlights have been adopted.
•  Discharge headlights, with a wide illumination area and projection of white light with a hue similar to sunlight, have been adopted.
ar8wzn00000679

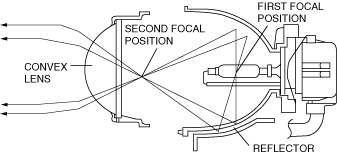

Projector-type Headlight

•  Light emitted from the first focal point is projected off the reflector, gathered at the second focal point, and output through the convex lens.
ar8wzn00000680
