HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION

id091800802000

1.  Disconnect the negative battery cable.

2.  Remove the trunk lid trim. (See TRUNK LID TRIM REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

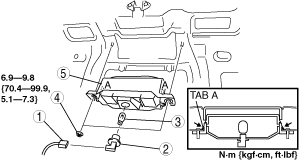

chu0918w120

1	Connector
2	Socket
3	High-mount brake light bulb
4	Nut
5	High-mount brake light

4.  Install in the reverse order of removal.
