FRONT FOG LIGHT AIMING

id091800802200

1.  Point the front fog lights to a wall and verify that the front fog lights are as shown in the figure.

ar8uuw00001818

2.  Make a front fog light adjustment screen as shown in the figure using double-weight, white paper.

ar8uuw00001819

3.  Adjust the tire pressure to the specification.

4.  Position the unloaded vehicle on a flat, level surface.

5.  Seat one person in the driver’s seat.

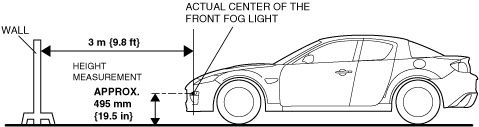

6.  Line up the front fog lights with the white screen at a distance of 3 m {9.8 ft} apart.

7.  Measure the height of the center of the front fog light (the center of the front fog light bulb).

Note

•  Since the height of the vehicle varies depending on the vehicle situation,measure the height of the center of the front fog light using the actual vehicle.

ar8uuw00001820

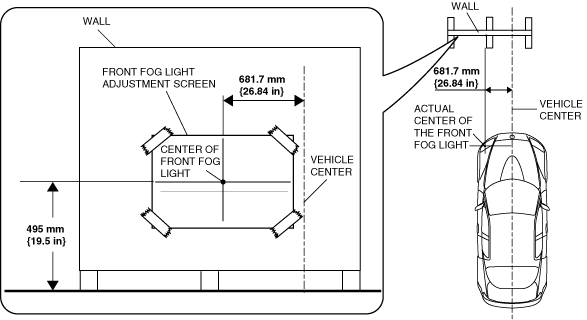

8.  Adjust the center of the adjustment screen to the point 681.7 mm {26.84 in}from the center of the vehicle and the measured height in the direction the headlight points, then affix the screen to the wall.

ar8uuw00001821

9.  Start the engine so that the battery remains charged.

10.  Turn the front fog lights on.

11.  Place a partition screen in front of the front fog light not being adjusted to block its light beam.

12.  Verify that the brightness border line of the front fog light is at the position indicated on the adjustment screen.

•  If the brightness border line is not at the position indicated on the adjustment screen, perform the following adjustment.

1.  Turn up the mudguard.

ar8uuw00001822

2.  Loosen the adjusting bolt and the screw.

3.  Move the front fog light in the direction of the arrow shown in the figure to adjust the brightness border line to the position indicated on the adjustment screen.

4.  Install the adjusting bolt and tighten the screw.
