LIGHT SWITCH INSPECTION

id091800802900

Vehicles With Light Switch On Left Side

Vehicle without auto light system

1.  Remove the column cover. (SeeCOLUMN COVER REMOVAL/INSTALLATION.)

2.  Remove the ignition key illumination. (SeeIGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)

3.  Remove the light switch. (SeeLIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

Headlight switch

ar8wzw00000923

•  If not as indicated in the table, replace the light switch.

ar8uuw00001852

Turn switch

ar8uuw00001853

ar8uuw00001854

Vehicle with auto light system

1.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

2.  Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)

3.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

Headlight switch

ar8wzw00000924

•  If not as indicated in the table, replace the light switch.

ar8wzw00000925

Turn switch

ar8wzw00000926

ar8uuw00001858

Vehicles With Light Switch On Right Side

Vehicle without auto light system

1.  Remove the column cover. (SeeCOLUMN COVER REMOVAL/INSTALLATION.)

2.  Remove the ignition key illumination. (SeeIGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)

3.  Remove the light switch. (SeeLIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

Headlight switch

ar8wzw00000927

•  If not as indicated in the table, replace the light switch.

ar8wzw00000928

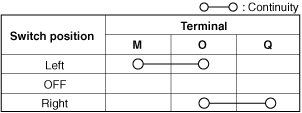

Turn switch

ar8wzw00000929

ar8wzw00000930

Vehicle with auto light system

1.  Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)

2.  Remove the ignition key illumination. (See IGNITION KEY ILLUMINATION BULB REMOVAL/INSTALLATION.)

3.  Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)

4.  Verify that the continuity between the light switch terminals is as indicated in the table.

Headlight switch

ar8wzw00000931

•  If not as indicated in the table, replace the light switch.

ar8wzw00000932

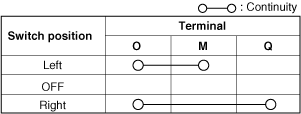

Turn switch

ar8wzw00000933

ar8wzw00000934
