PARKING LIGHT BULB REMOVAL/INSTALLATION


id091800804200

1.  Disconnect the negative battery cable.

2.  Remove the fastener, then slightly bend back the mudguard.

3.  Disconnect the connector.

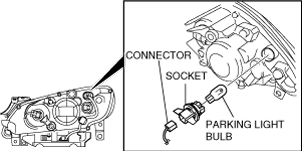

ar8wzw00000915

4.  Remove the socket, then remove the parking light bulb.

5.  Install in the reverse order of removal.
