FRONT TURN LIGHT BULB REMOVAL/INSTALLATION

id091800805000

1.  Disconnect the negative battery cable.

2.  Remove the fasteners, then slightly bend back the front mudguard.

3.  Disconnect the connector.

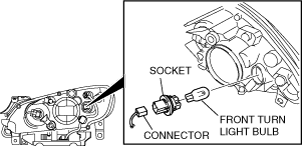

ar8uuw00001778

4.  Remove the socket, then remove the front turn light bulb.

5.  Install in the reverse order of removal.
