REAR FOG LIGHT REMOVAL/INSTALLATION


id091800805100

1.  Disconnect the negative battery cable.

2.  Detach the socket and remove the rear fog light bulb.

ar8wzw00000085

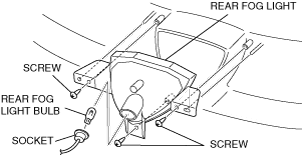

3.  Remove the screws, then remove the rear fog light.

4.  Install in the reverse order of removal.
